Developer Guide

Acknowledgements

https://se-education.org/

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

The Design consist of different classes and component like Ui, Storage, Parser, TaskList, MainWindow and Duke.

Sequence Diagram

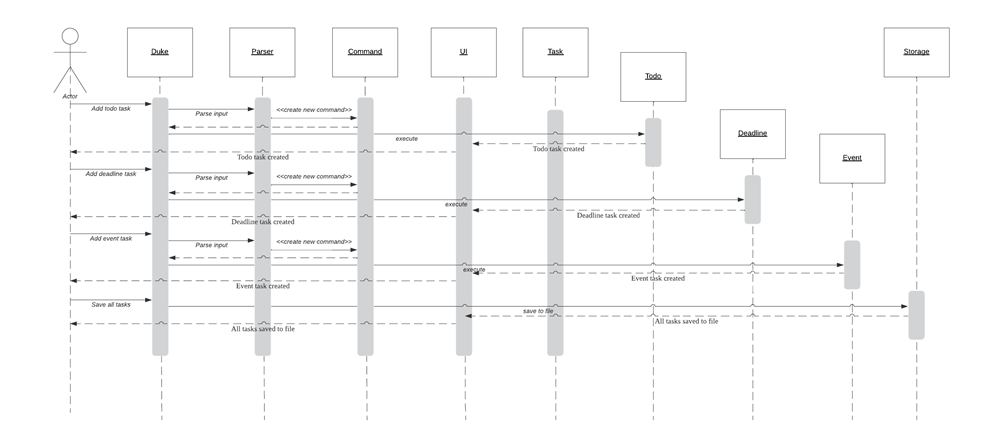

The Sequence Diagram below shows how the components interact with each other for the scenario where the user executes the command add and save tasks.

• The user executes add todo task command
• Duke calls Parser to parse user input and return Command
• Duke calls Command to execute add task
• The user proceed to save tasks to file

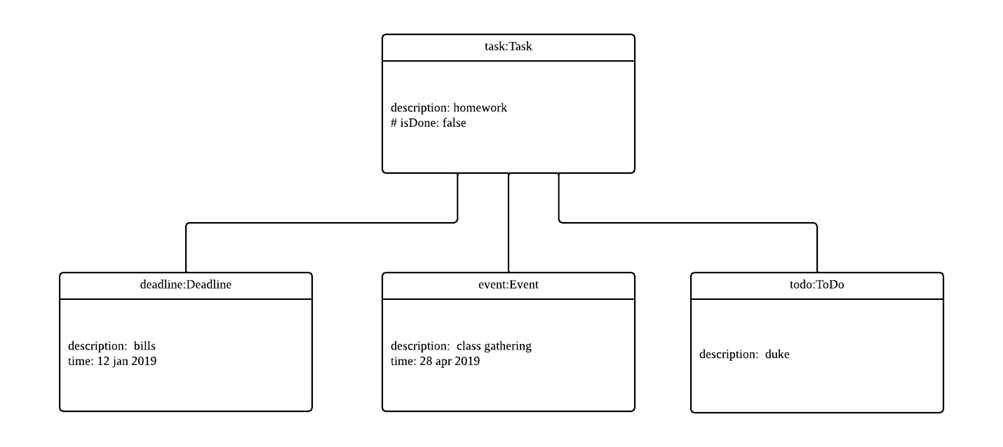

Object Diagram

Appendix: Requirements

Product scope

Target user profile

• has a need to manage and track tasks
• prefers desktop apps over other types
• prefers typing to mouse interactions
• is reasonably comfortably using CLI apps and GUI apps

Value proposition

• keep record of task(s) (todo, deadline, and event task)
• find task(s) easily and clearly
• easy to remove task

User Stories

Version	As a …	I want to …	So that …
v1.0	new user	know how to add a task	I can record the task to track
v1.0	new user	know how to delete task(s)	I can remove tasks that I do not have to keep track anymore
v1.0	new user	view the list of task	I can see all my tasks
v1.0	new user	mark task(s) as done	I can keep track of the status of my tasks
v1.5	semi-new user	save my tasks to file	I can track my tasks everyday
v2.0	user	find all tasks of a specific task type	I can easily check for the information I need
v2.0	user	find all tasks based on date range	I can easily check the tasks that needs to be completed within the date range
v3.0	user	have a GUI instead of CLI	it is more user friendly
v3.0	user	sort tasks based on task types	I will not miss anything out

Use Cases

(For all use cases below, the System is Duke and the Actor is the user, unless specified otherwise)

Use case: Add Task

1. User input task details
2. Duke records the task
3. Duke shows the task added successfully
4. User save updated task list to file

Use case: Delete Task(s)

1. User requests to delete task(s)
2. Duke deletes the task(s) from the list
3. Duke shows the task deleted successfully
4. User save updated task list to file

Use case: List Tasks

1. User requests to view all tasks
2. Duke shows the list of tasks

Use case: Find Tasks

1. User keys in the keyword to search (e,g date range, task types)
2. Duke performs searching
3. Duke shows the filtered list of tasks

Use case: Sort Tasks

1. User requests to sort all tasks
2. Duke performs sorting based on task types
3. Duke shows the sorted list of tasks

Non-Functional Requirements

• Each request should be processed within 3 seconds.
• Should work on any mainstream OS as long as it has Java 11 or above installed.
• The command should be easy to understand and to use.
• Program should be easily add in new function or new modules.

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X
• CLI - Command Line Interface
• GUI - Graphical User Interface
